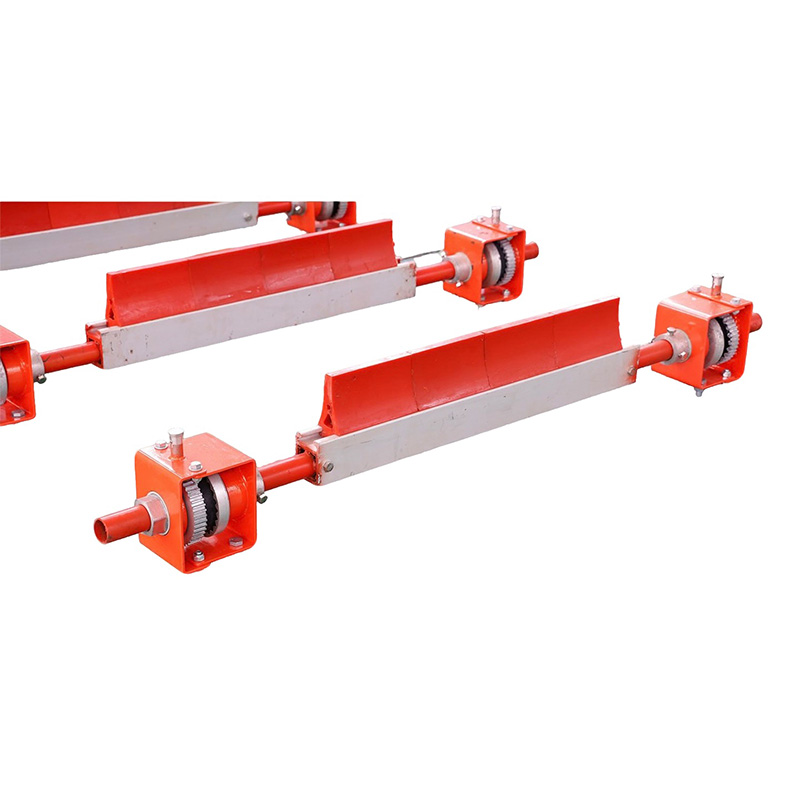

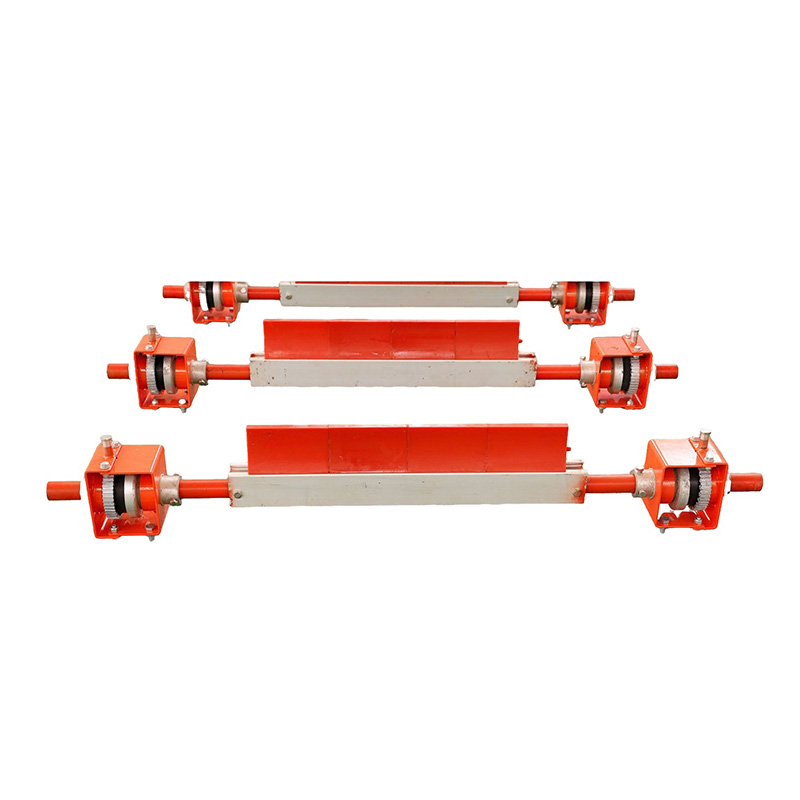

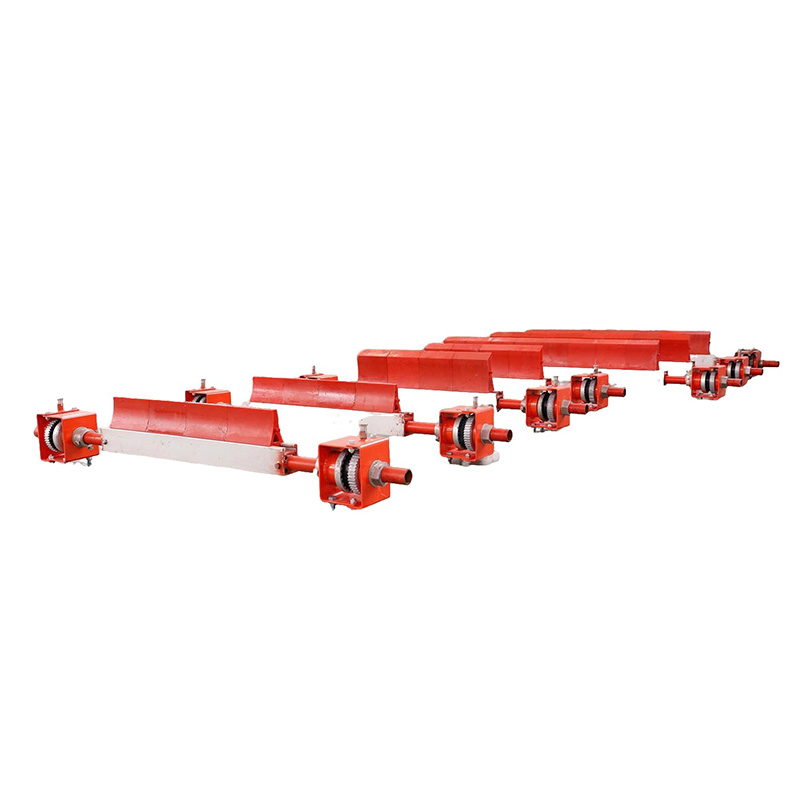

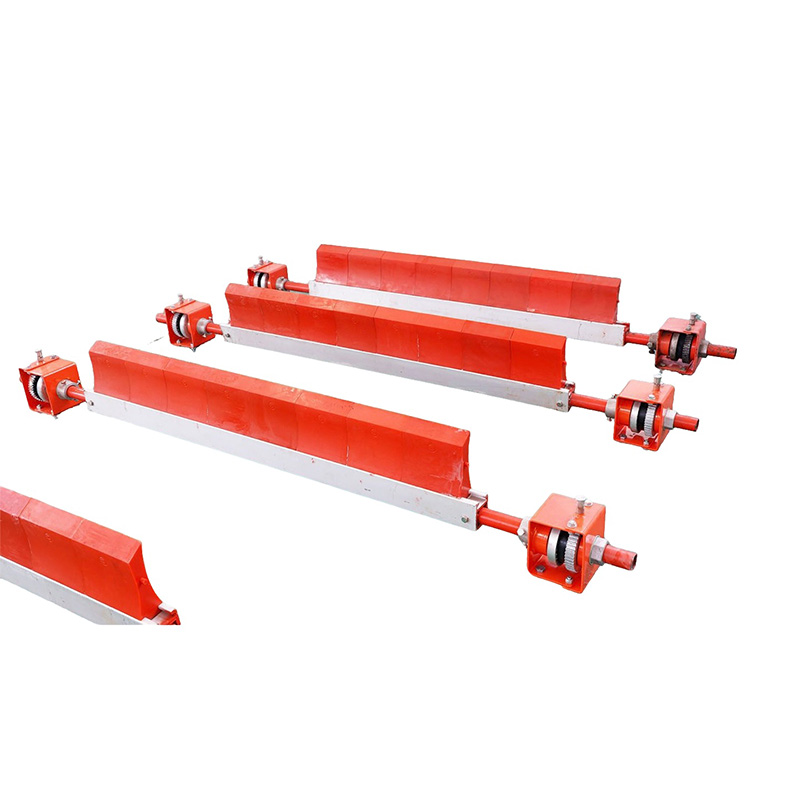

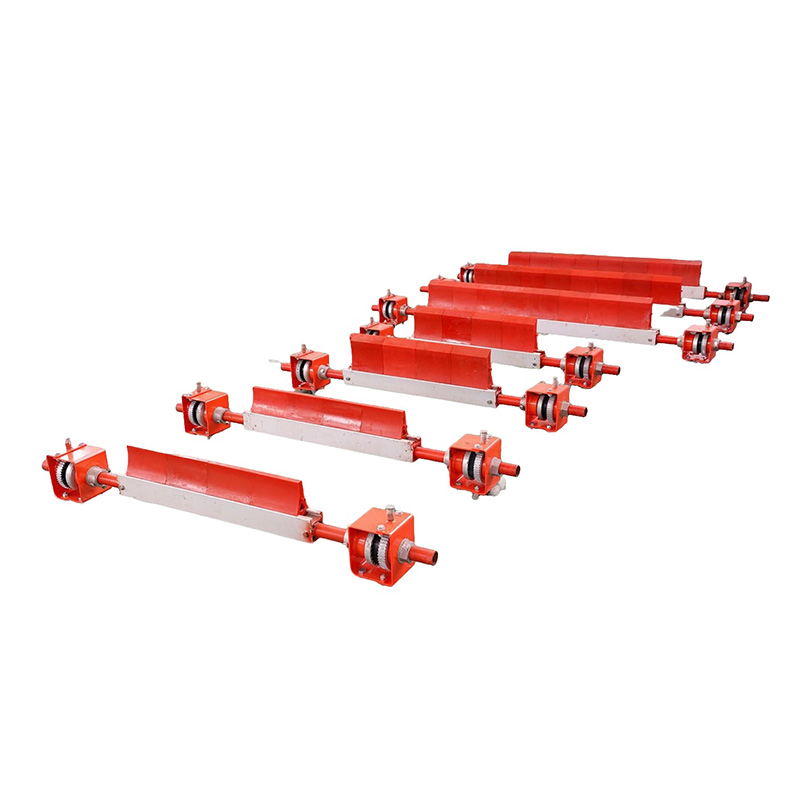

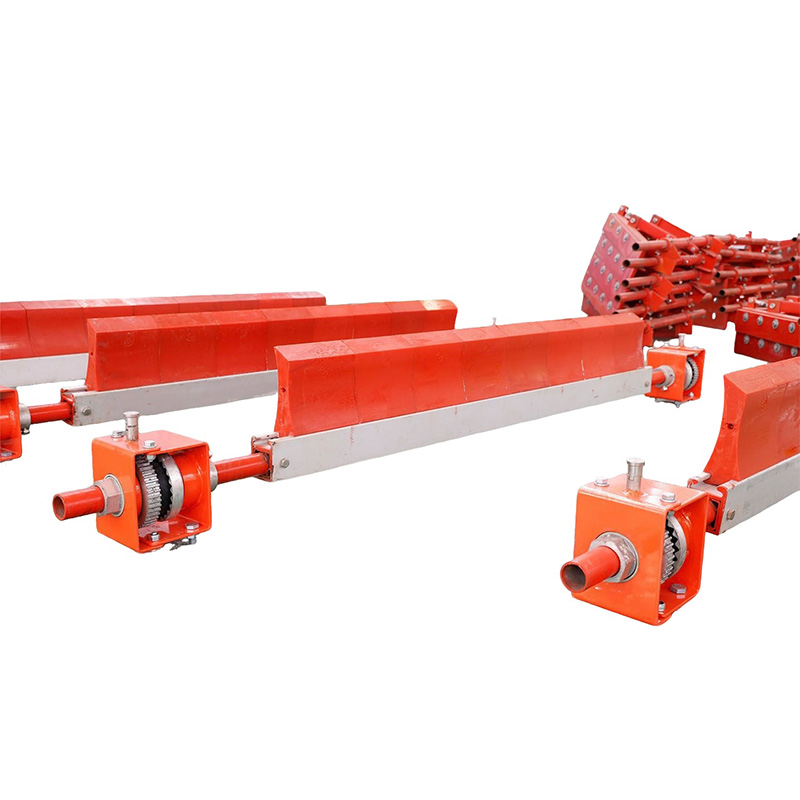

Designed for heavy-load and highly abrasive mine conditions, the LQ-L carbide blade belt cleaner fits various mining belt conveyors. It handles hardened sticky materials and hard slag, making up for the poor wear resistance of polyurethane scrapers.
The integrated carbide blade boasts outstanding wear resistance and impact resistance to strip caked ore on belts. Equipped with pressure adjustment and buffer structure, it delivers thorough cleaning without damaging the conveyor belt.
Constructed with thickened welded steel frame, the device is shock-resistant. Adjustable angle and pressure ensure stable installation, ideal for underground mines, open-pit crushing stations and aggregate conveying systems.
Product Advantage
1. Ultra Wear-resistant Carbide Blade
Integrated cemented carbide blade provides extreme hardness and strong impact resistance. It perfectly solves the low wear resistance weakness of ordinary polyurethane scrapers and adapts to heavy abrasive mining conditions.
2. Powerful Stripping Capacity
Effectively removes hardened ore mud, caked sticky materials, hard slag and stubborn bulk attachments on the belt surface. It achieves thorough cleaning that ordinary cleaners cannot handle.
3. Buffering & Belt Protection Design
Equipped with adjustable pressure buffer structure. The rigid blade cleans strongly without scratching, cutting or damaging the conveyor belt surface, greatly extending belt service life.
4. Heavy-duty Steel Structure
Thickened welded steel frame is shock-proof, impact-resistant and deformation-free. It remains stable under long-term continuous heavy-load mining vibration.
5. Dual Adjustable Design
Both working angle and pressing pressure are adjustable. It can be finely adapted to different belt widths, belt speeds and complex mining working conditions.
Technical Parameters
Item | Parameter |
Model | LQ-L (Heavy Duty Cemented Carbide Primary Cleaner) |
Application | Primary cleaning at the head of belt conveyors for heavy-duty,high-viscosity,high-abrasion working conditions such as mines,coal mines,and iron mines |
Applicable Belt Width | B800/B1000/B1200/B1400/B1600/B1800/B2000 (non-standard customizable) |
Installation Position | 100–200mm below the head discharge drum,the angle between the cleaner and the belt is 65°–75° (45°–65° for viscous materials) |
Cleaning Efficiency | Residual material ≤ 0.1kg/m2 |
Equipment Weight | 50–120kg (increases with belt width) |
Main Shaft Material | Seamless steel pipe (φ76mm,wall thickness ≥8mm),Q235 carbon steel/304 stainless steel optional |
Bracket Material | Q235 carbon steel (electrostatic spraying,coating ≥100μm),anti-corrosion and anti-rust |
Tensioning System | Spring constant pressure adjustment (rectangular die spring,φ28mm),adjustable pressure,automatic wear compensation |
Adjustment Range | Up and down ±50mm,left and right ±30mm,angle 0°–30° adjustable |
Working Temperature | −30°C ~ +80°C,acid and alkali resistant,oil resistant |
Product Uses
1. Coal Mines: Underground fully-mechanized mining, main conveyor belts and coal washing lines. Removes caked coal slime and gangue.
2. Metal Mines: Open-pit sites, crushing and mineral processing belts. Cleans hard ore slag and fine powder.
3. Quarries: Crushed stone and aggregate conveying lines. Handles stone dust and lumpy materials.
4. Transfer Points: Mine transfer buildings and drop conveyor belts. Works steadily under vibration with no blind cleaning areas.
5. General Heavy-duty Mining Belts: Applicable to long-distance, wide-width and steel-cord heavy-duty conveyors.
