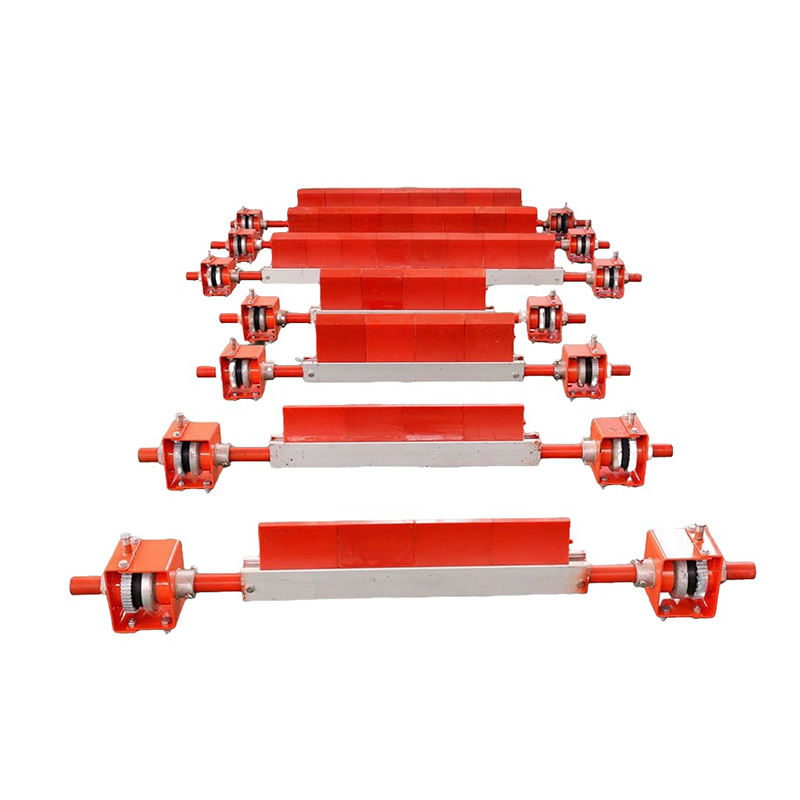

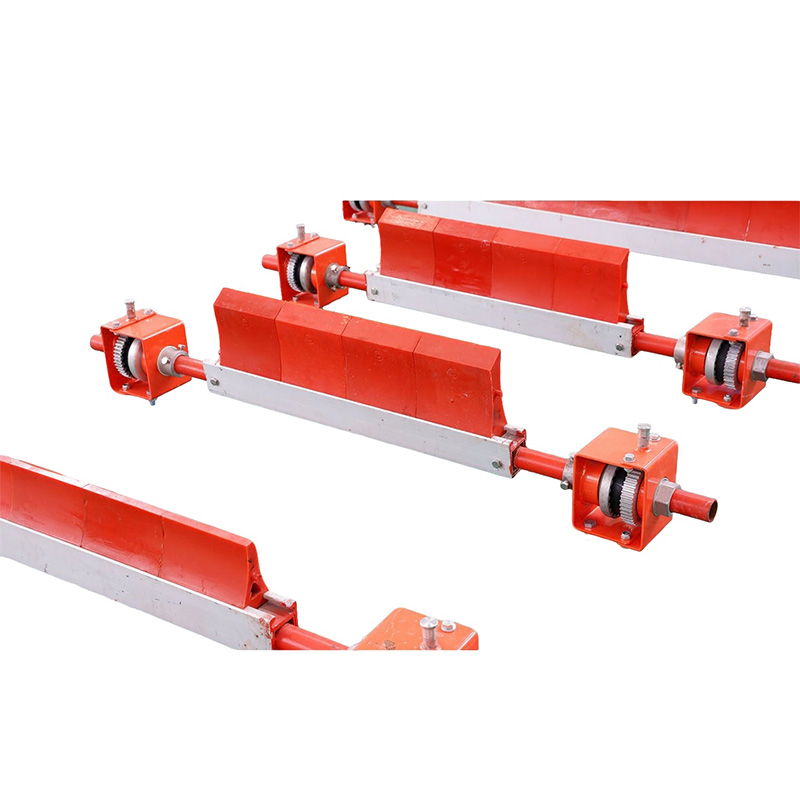

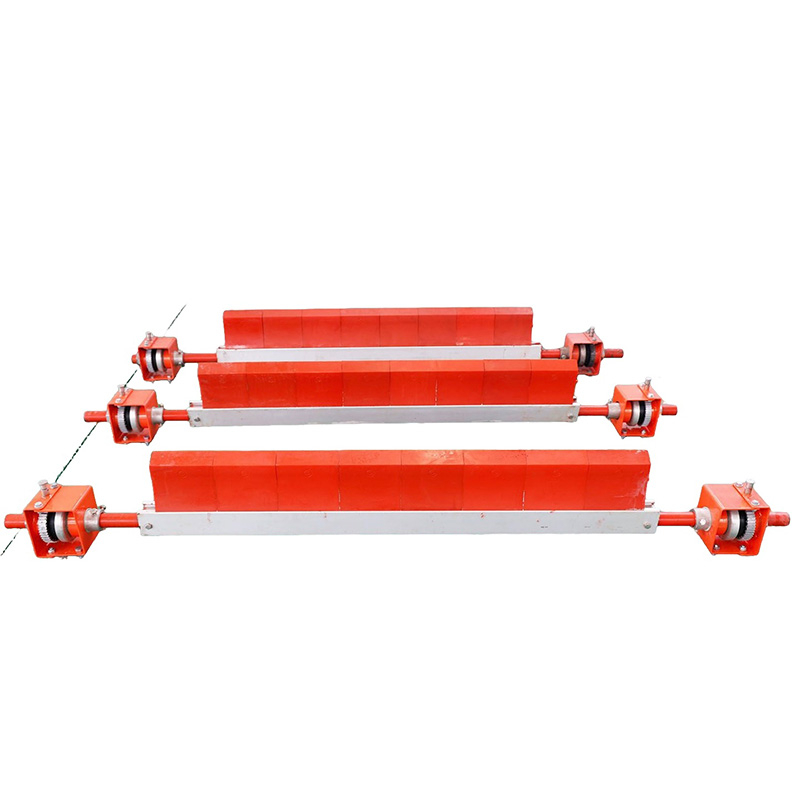

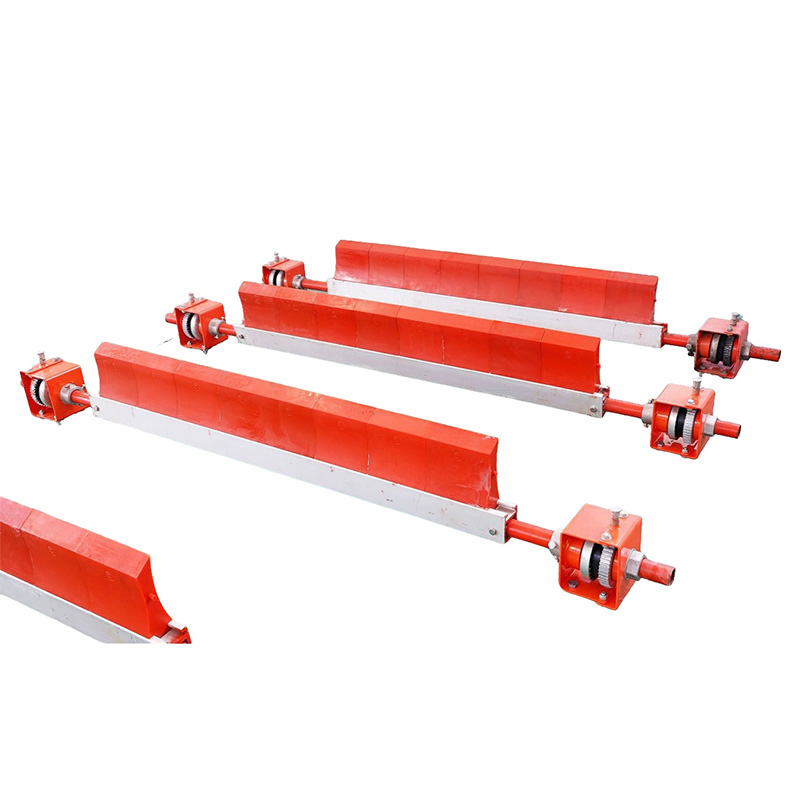

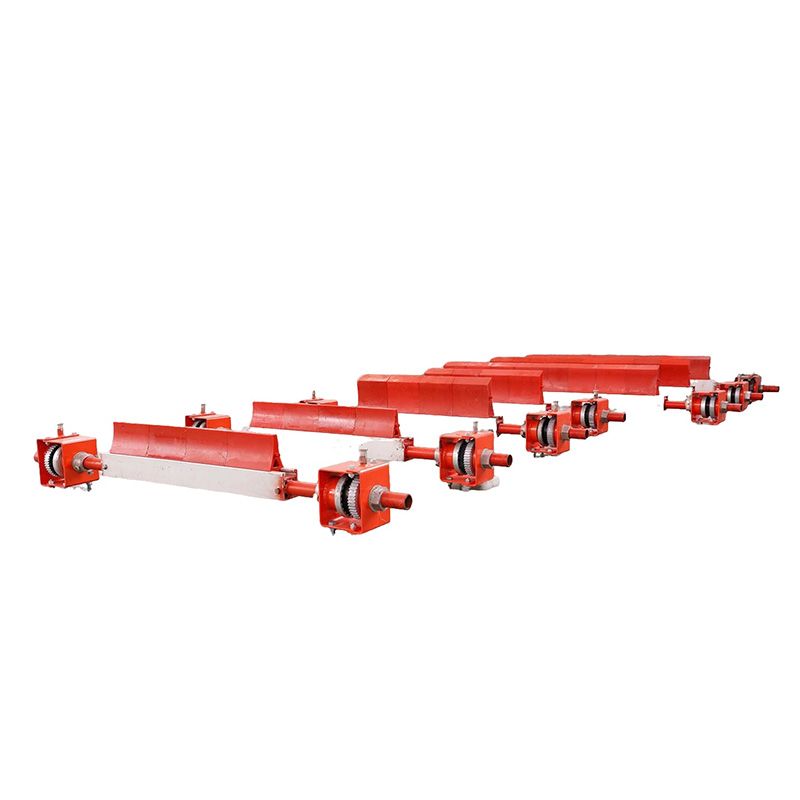

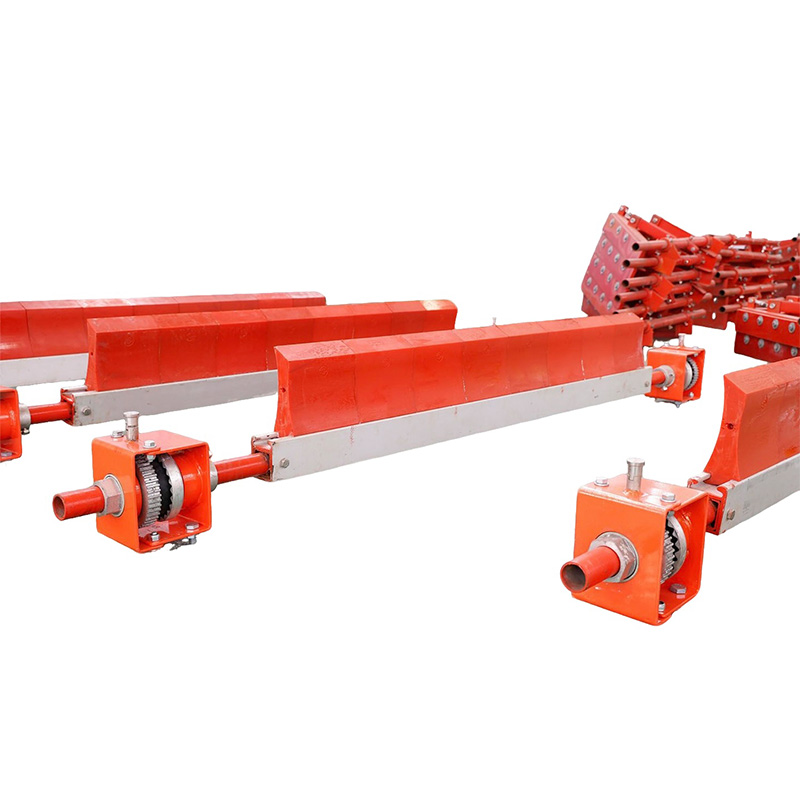

The V-type polyurethane return belt scraper is a dedicated cleaning device for the non-working surface of belt conveyors. It is installed in front of the tail bend pulley, designed to remove dust, fine particles, slime and sticky materials adhering to the return belt. It effectively protects pulleys and belts, and prevents belt deviation and abnormal wear.
Product Advantage
1. Definition & Application
• Installation Position: Ahead of the tail pulley and tensioning device, above the return belt (non-working side).
• Function: Removes residual materials on the return belt to prevent materials from winding around pulleys, which would otherwise cause belt deviation, wear of pulley lagging, material accumulation on idlers, increased energy consumption and potential safety hazards.
• Application Scenarios: Widely used in coal mines, power plants, ports, metallurgy, building materials and other industries for conveying dusty and sticky materials. Applicable belt width: 500–2400 mm; Maximum belt speed: ≤ 4.6 m/s.
2. Main Advantages
• Thorough cleaning: V-shaped flow guiding design eliminates material residue in the middle area.
• Belt protection & long service life: Flexible polyurethane material avoids belt damage, with outstanding wear and corrosion resistance.
• Automatic adaptation: Real-time compensation for blade wear ensures stable fitting and low maintenance.
• High safety: Flame-retardant and anti-static performance makes it suitable for underground and flammable & explosive environments; simple structure for quick installation.
• Cost reduction: Reduces belt deviation and component wear, cutting downtime and maintenance costs.
Technical Parameters
Belt width (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
B=650 | 1250 | 580 | 280 | 150 | 240 |
B=800 | 1400 | 680 | 310 | 240 | 340 |
B=1000 | 1600 | 830 | 355 | 330 | 440 |
B=1200 | 1800 | 980 | 400 | 420 | 540 |
B=1400 | 2000 | 1130 | 445 | 510 | 640 |
B=1600 | 2200 | 1280 | 490 | 600 | 740 |
B=1800 | 2400 | 1430 | 535 | 690 | 840 |
B=2000 | 2600 | 1580 | 580 | 780 | 940 |
B=2200 | 2800 | 1730 | 625 | 870 | 1040 |
B=2400 | 3000 | 1880 | 670 | 960 | 1140 |
Product Uses
1. Coal Industry
Underground coal mines, coal washing plants and coal yard conveying systems. It removes coal slime, coal dust and wet cinder on return belts, prevents belt deviation and component abrasion, and meets explosion-proof requirements for underground working conditions.
2. Power Industry
Coal handling galleries and fuel conveying lines of thermal power plants. It cleans coal dust and agglomerated materials, reduces equipment failure and ensures stable operation.
3. Port & Logistics
Belt conveyors at bulk cargo terminals and storage yards for coal, ore, sand, grain and other bulk materials. Suitable for heavy-duty and all-weather continuous operation.
4. Metallurgical Industry
Steel plants, coking plants and mineral processing plants. Used for conveying iron ore, mineral powder, slag and coke powder. Effectively handle heavy dust and hard fine particles.
5. Building Materials Industry
Cement plants, sand and gravel yards and ceramic factories. Cleans cement dust, stone powder and debris, applicable to dusty and slightly corrosive working environments.
6. Chemical & Non-metallic Mining
Production lines for phosphate ore, gypsum, chemical raw materials and other viscous powders. Acid and alkali resistant, anti-static for chemical site safety.
7. General Industries
Waste incineration plants, aggregate processing plants, feed production lines and all kinds of conventional belt conveyors.
