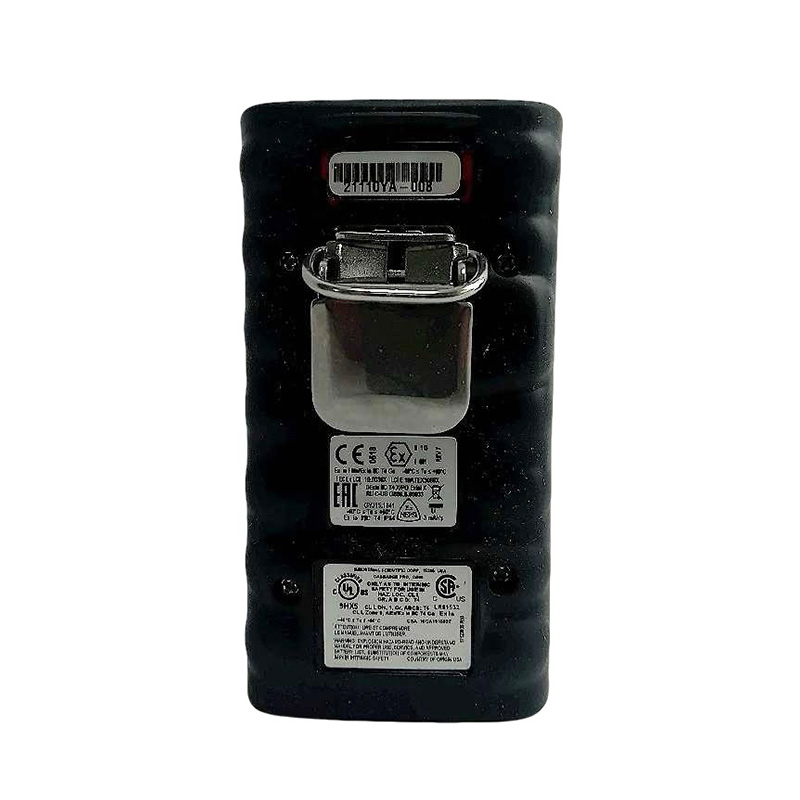

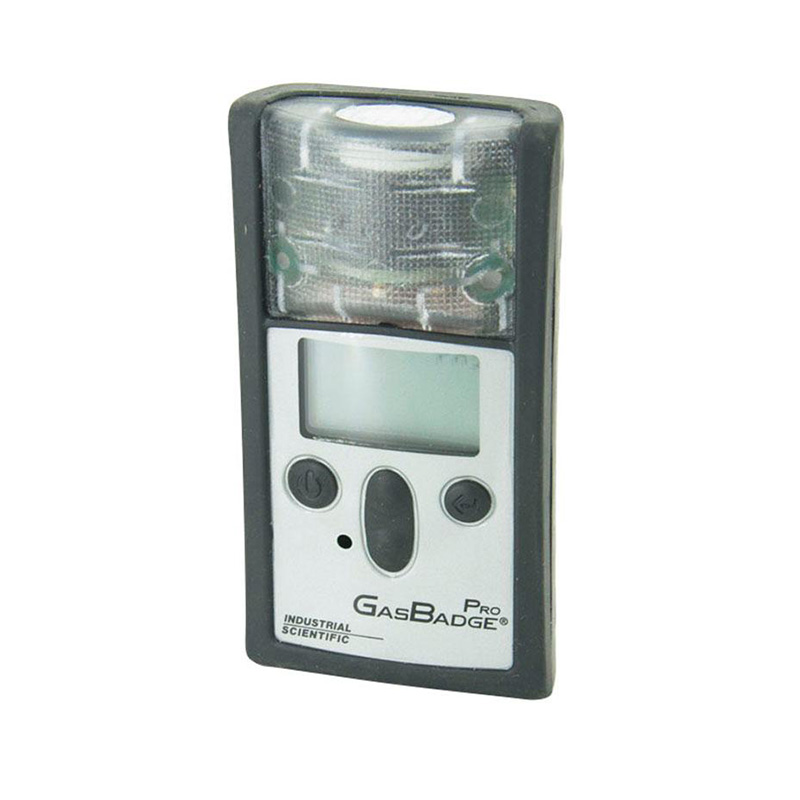

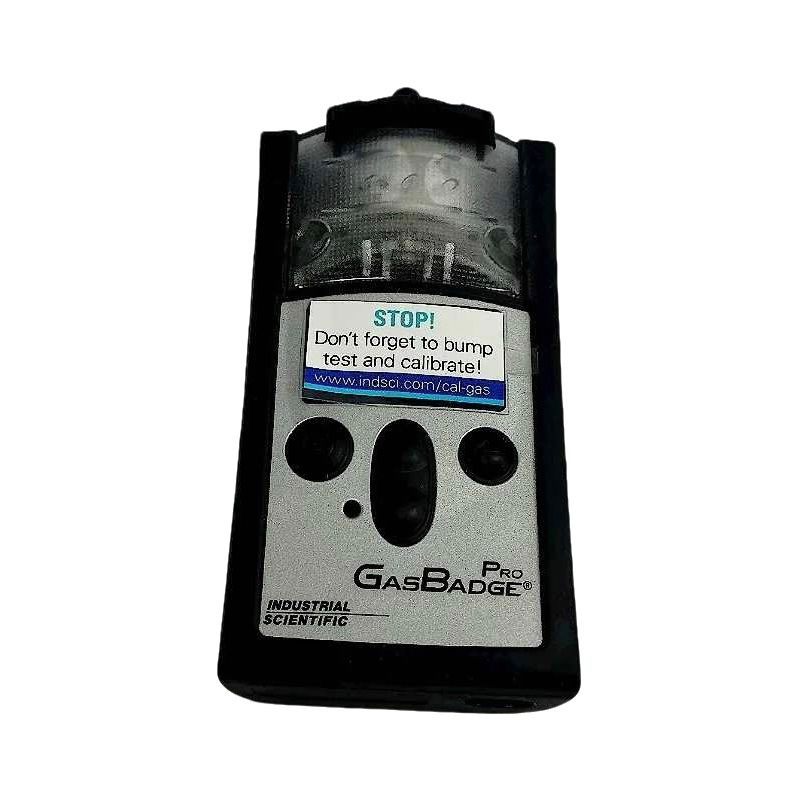

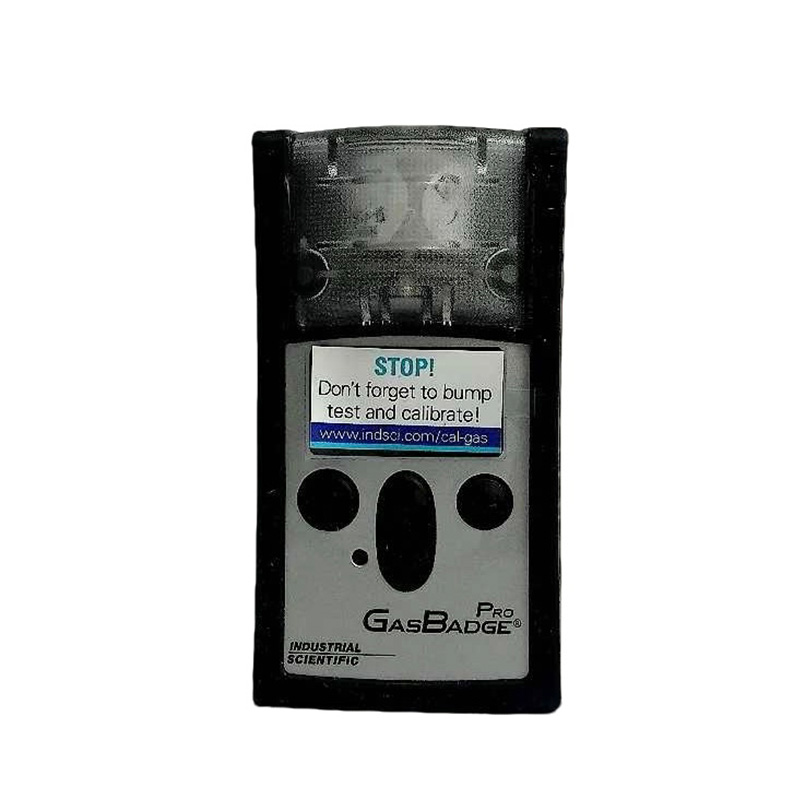

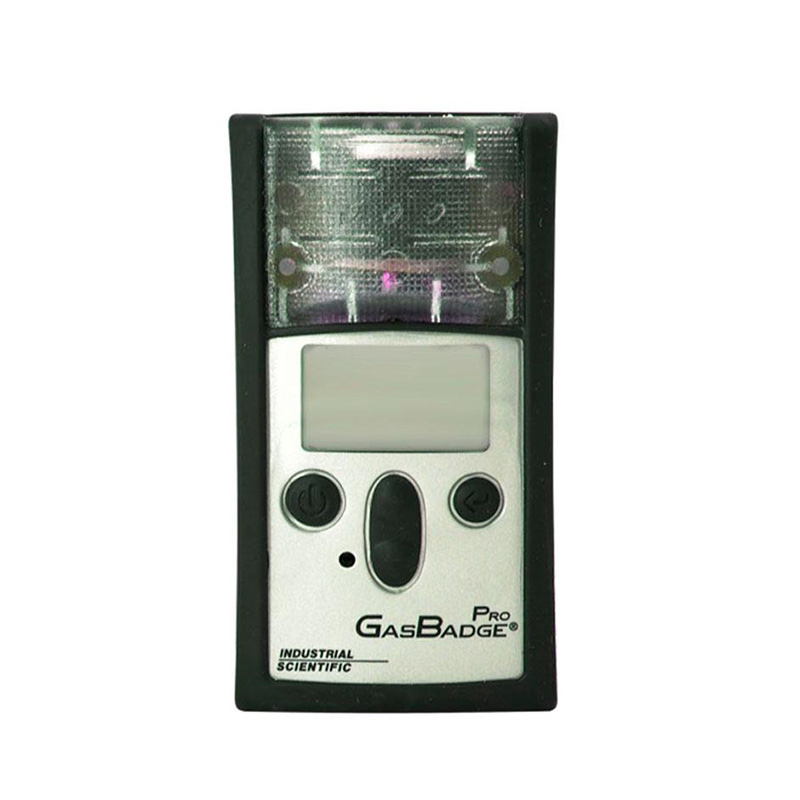

GasBadge Pro (H₂) is a portable, intrinsically safe hydrogen (H₂) single gas detector designed by Industrial Scientific, USA. It is engineered for harsh environments such as coal mines, metallurgy and chemical plants, providing real-time monitoring of hydrogen concentration to prevent explosion hazards.
Product Advantage
1. Certified Safety: With MA certification and intrinsic safety design, ideal for underground coal mines to prevent hydrogen explosion.
2. Accurate Detection: Original electrochemical sensor, range 0–2000ppm, pre-calibrated, stable and anti-interference.
3. Long Runtime: Powered by CR2 lithium battery for around 1-year continuous use, only annual calibration needed.
4. Light & Rugged: Weighs 85g for easy wearing. IP65 rated, shockproof and RFI-resistant for harsh mine conditions.
5. Triple Alarm: Audible, LED and vibration alarms with adjustable thresholds for reliable warning.
6. Data Traceability: Large data storage for STEL/TWA and alarm records, supporting infrared download.
7. Easy Operation: Backlit display and simple keys, operable with gloves. Infrared calibration without opening housing.
8. Warranty: Comes with official lifetime warranty.
Technical Parameters
Item | Specification |
Target Gas | Hydrogen (H2) |
Detection Principle | Electrochemical smart sensor |
Measuring Range | 0 ~ 2000 ppm |
Resolution | 1 ppm |
Accuracy | ±2% ~ ±15%FS (varies with ambient temperature) |
Sensor Feature | Pre-calibrated at factory,plug-and-play |
Alarm Mode | 95dB audible,bright LED and vibration triple alarm |
Alarm Setting | Adjustable high/low alarm thresholds,STEL/TWA alarm supported |
Alarm Log | Stores latest 15 alarm events |
Data Storage | 520,000 data points (about 1 year) |
Record Content | Real-time concentration,peak value,STEL,TWA,alarm information |
Data Transmission | Non-contact infrared download |
Calibration | Infrared calibration,no need to open enclosure |
Operating Temperature | -40 °C ~ +60 °C |
Operating Humidity | 0%RH ~ 99%RH (non-condensing) |
Ingress Protection | IP66/IP67 |
Anti-interference | RFI resistant,shockproof |
Explosion-proof Grade | Ex ia IIC T4,Intrinsically Safe |
Certification | MA Coal Mine Safety Certification |
Dimensions | 94 × 50.8 × 27.9 mm |
Weight | 85 g (with battery) |
Housing Material | High-strength polycarbonate with rubber buffer |
Power Supply | 3V Replaceable CR2 lithium battery |
Continuous Runtime | ≥2600 hours (approx. 1 year at normal temperature) |
Sensor Service Life | ≥1 year |
Display | Backlit LCD,Chinese & English language available |
Operation | 4-key design,operable with work gloves |
Warranty | Lifetime warranty (excluding sensor and battery) |
Product Uses
1. Underground Coal Mine
Mine charging chambers and battery storage areas to detect hydrogen released during battery charging and discharging, and prevent explosion hazards.
2. Mine Roadways & Working Faces
Tunneling roadways, sealed roadways and mining faces for monitoring hydrogen separated from surrounding rock.
3. Mining Auxiliary Facilities
On-site power distribution rooms, equipment rooms, chemical warehouses and temporary hydrogen storage areas in mining areas.
4. Metallurgical Industry
Smelting workshops, coking plants and metal processing sites for hydrogen leakage detection.
5. Chemical & Energy Plants
Hydrogen-related workshops, hydrogen production stations and gas transmission areas for patrol inspection.
6. Tunnel Engineering
Gas tunnels and utility tunnels during construction and operation to monitor hydrogen accumulation.
